Adiabatic Chiller: An Efficient Solution for Arid Regions with Sufficient Water Resources
Introduction
Iran is a country with diverse climates, including vast arid and semi-arid regions. In many provinces—especially the central plateau, the south, southeast, and eastern areas—hot and dry summers prevail, with very low relative humidity for most of the year. In such climates, providing efficient cooling for buildings, industrial applications, and process environments comes with serious challenges such as high electricity consumption, pressure on the national grid, and high operational costs.
One of the innovative and energy-efficient solutions that has gained popularity in recent years in both developed countries and Iran is the use of adiabatic chillers. These systems combine evaporative cooling technology with traditional vapor-compression cooling to offer HVAC designers an optimized, low-energy, and environmentally friendly alternative.
In this article, we will explore the concept, operating mechanism, advantages, applications, and climatic suitability of adiabatic chillers in detail. We will also explain how Tahvieh Mobadel Pars leverages engineering expertise and localized technology to offer professional design and consultation services in this field.
?What Is an Adiabatic Chiller

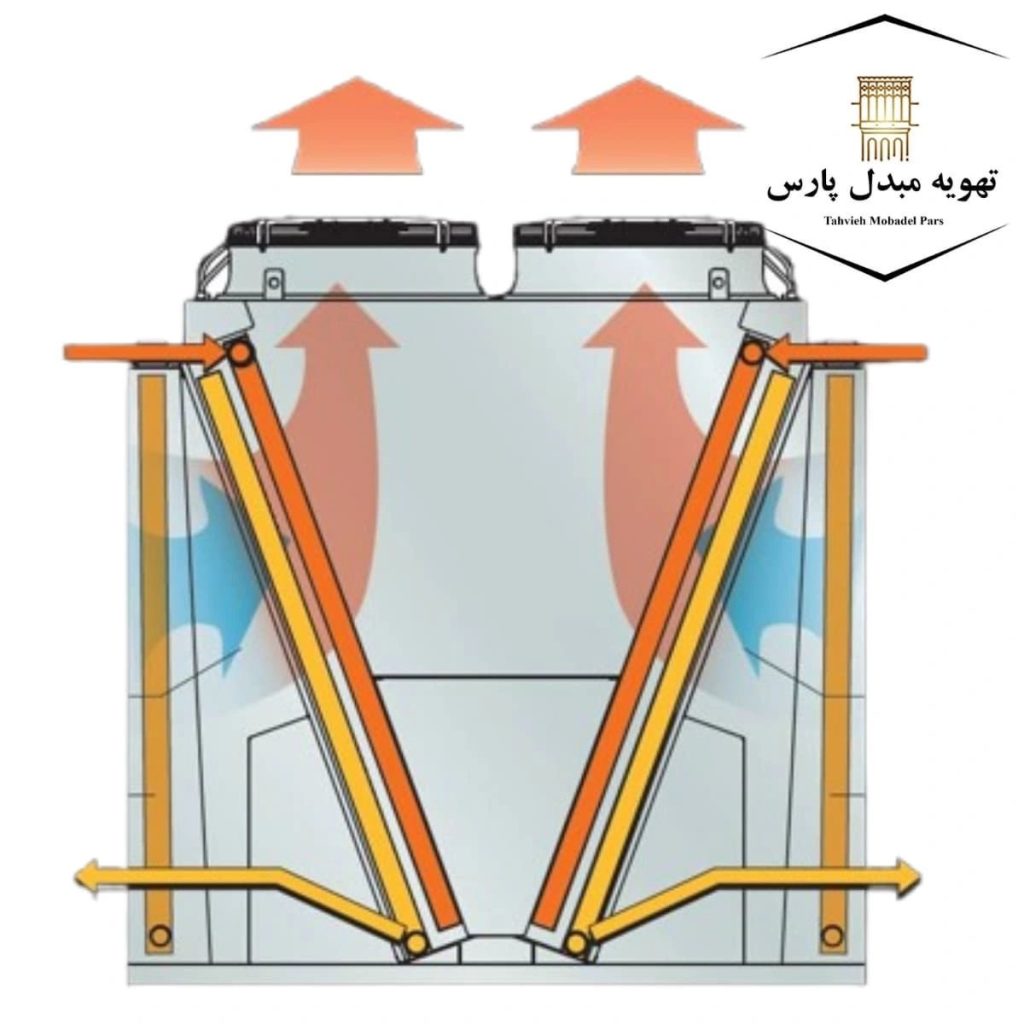

An adiabatic chiller is a type of air-cooled chiller equipped with a pre-cooling stage using evaporative cooling. In this system, before air reaches the condenser (heat exchanger), it is adiabatically cooled—meaning its temperature drops without gaining or losing sensible heat. This pre-cooling is achieved through water spray or by passing air through wet pads, which significantly lowers the air temperature before it enters the condenser, improving the overall efficiency of the chiller.
In standard air-cooled chillers, high ambient temperatures in summer increase condenser pressure and reduce compressor efficiency. By contrast, in adiabatic chillers, lower condenser inlet air temperatures reduce pressure and optimize compressor performance, thereby lowering energy consumption.
How Adiabatic Chillers Work
The operation of adiabatic chillers is based on a combination of evaporative and mechanical vapor-compression cooling:
Evaporative Pre-cooling (Adiabatic Stage)
Before air reaches the condenser, it passes through wet cooling pads or is sprayed with water via fine nozzles. As the water evaporates, it absorbs latent heat from the air, reducing its temperature.
Condenser Cooling
The pre-cooled air then enters the condenser and absorbs heat from the hot refrigerant gas. Since the inlet air is cooler than the ambient temperature, the condensation process occurs at a lower pressure, enhancing system efficiency.
Refrigerant Compression Cycle
The rest of the chiller cycle continues as in a conventional system: the refrigerant passes through the compressor, condenser, expansion valve, and evaporator to deliver the required cooling.
Advantages of Adiabatic Chillers
Using adiabatic chillers in Iran’s dry climate can provide several benefits:
Reduced Electricity Consumption
Lower condenser inlet air temperature reduces pressure and load on the compressor, significantly lowering power usage—especially during peak summer loads.
No Cooling Tower Required
Like conventional air-cooled chillers, adiabatic chillers do not require a cooling tower, making installation, commissioning, and maintenance simpler than water-cooled systems.
Higher Efficiency in Dry Climates
In regions with low humidity, the evaporation rate is higher, making the adiabatic process much more efficient. This is a major advantage in many parts of central Iran.
Stable Performance in Extreme Heat
In cities where summer temperatures exceed 45°C, standard air-cooled chillers struggle. Adiabatic chillers can still perform efficiently by cooling the condenser inlet air.
Smaller Electrical Infrastructure
Lower compressor power means lower electrical demand, allowing for reduced cable sizes, switchgear, and generator capacity.
Adiabatic vs. Standard Air-Cooled Chillers
Compared to conventional air-cooled chillers, adiabatic chillers perform much better in hot and dry climates. While a typical air-cooled chiller uses ambient air directly at ambient temperature, an adiabatic chiller can reduce this temperature by 5°C to 12°C through evaporative cooling. This directly decreases condenser pressure and power consumption—potentially up to ۲۰% less electricity usage during peak heat.
In terms of water use, traditional air-cooled chillers require no water, whereas adiabatic chillers use a limited amount for evaporative cooling. However, this consumption is manageable and can be supplied using non-potable water sources such as greywater or treated wastewater.
In dry regions, adiabatic chillers are clearly more efficient, as low humidity allows more effective evaporation and cooler condenser air. In humid climates, their performance declines due to air saturation.
From a maintenance perspective, conventional air-cooled chillers are simpler and lower cost. Adiabatic chillers require periodic maintenance for water systems, including cleaning spray nozzles and cooling pads and managing water quality.
Finally, water hardness is a critical consideration. While it has no effect on standard air-cooled chillers, in adiabatic systems, scale formation from hard water can reduce efficiency. Therefore, water filtration or softening systems should be integrated into the design.
Ideal Conditions for Adiabatic Chillers
Adiabatic chillers perform best in areas with the following characteristics:
Low Relative Humidity: Below 40% for most of the day ensures effective evaporation and air cooling.
High Summer Temperatures: Especially in areas where ambient temperatures exceed 38–۴۰°C.
Access to Non-potable Water: Greywater, treated wastewater, or non-drinking wells are ideal for supplying the system.
Cities such as Yazd, Isfahan, Kerman, Tabas, Semnan, Zahedan, Kashan, Ardakan, and Naein are excellent examples of locations suitable for adiabatic chiller implementation.
Design and Implementation Considerations
To ensure optimal performance of adiabatic chillers, the following factors should be considered:
Water Quality: Proper filtration and descaling are essential to prevent nozzle clogging and maintain efficiency.
Smart Evaporative Control: Water spray or pad activation should only occur at high ambient temperatures to prevent unnecessary water use. This should be controlled by sensors and intelligent control systems.
Pad Material: Use of UV-resistant cellulose or polymer pads extends system life and reduces maintenance needs.
Ventilation: Proper airflow around the chiller should be ensured, with no warm air recirculation.
Tahvieh Mobadel Pars’ Role in Adiabatic Chiller Development
Tahvieh Mobadel Pars has leveraged its HVAC expertise to develop and localize adiabatic chiller technology. Taking into account Iran’s varied climate, the company provides custom, project-specific designs for each region’s actual cooling needs.
Our Services Include:
Engineering design based on project architecture and local climate
Energy simulation and thermal modeling using advanced software
Selection of cooling method (pad or spray) based on water quality and environment
Cooperation with equipment manufacturers for high-quality mass production
Technical consultation for designers, consultants, and project stakeholders
Conclusion
Adiabatic chillers present an intelligent, efficient solution for energy reduction in cooling systems, particularly in hot and dry areas of Iran. Combining basic evaporative cooling with mechanical refrigeration, these systems offer benefits such as reduced electricity usage, improved performance at high temperatures, and elimination of cooling towers.
Considering existing infrastructure, access to non-potable water, and the need to lower electrical load in the summer, adiabatic chillers can be a primary choice in the design of industrial, commercial, and building projects in dry climates.
Tahvieh Mobadel Pars is ready to collaborate with manufacturers, consulting engineers, and clients to advance this technology on a national scale.
